Templating

Introduction to Events and Templating

EventTrigger is a Kubernetes resource that enables dynamic, event-driven configuration management across clusters by automatically creating Sveltos ClusterProfiles in response to specific events.

When an event matches all conditions defined in an EventTrigger, it generates a tailored Sveltos ClusterProfile, automating the application of add-ons, policies, or configurations based on real-time changes in an environment.

The resulting Sveltos ClusterProfile can include:

  1. TemplateResourceRefs
  2. PolicyRefs
  3. HelmCharts
  4. KustomizationRefs

Note

This template functions are available.

Instantiation Flow: TemplateResourceRefs

The EventTrigger TemplateResourceRefs is instantiated using resource data and set to ClusterProfile.Spec.TemplateResourceRefs.

The namespace and name fields within each reference can be constants or templates. The templates are dynamically evaluated using data from the triggering cluster or resource, allowing the generated ClusterProfile to be context-aware and tailored to a specific event.

Usage Example:

  • {{ .Cluster.metadata.name }}
  • {{ .Resource.metadata.annotations.env }}
  • {{ printf "%s-%s" .Cluster.metadata.labels.region .Resource.metadata.name }}

Note

The templates are resolved at runtime. It allows systems to generate tailored Sveltos ClusterProfiles based on the specific context of each event.

Example: EventTrigger.spec.templateResourceRefs

EventTrigger.spec.templateResourceRefs Details

templateResourceRefs:
  - kind: ConfigMap
    namespace: "platform-config"
    name: "{{ .Cluster.metadata.labels.region }}-{{ .Resource.metadata.annotations.env }}"

Triggering Cluster Details

metadata:
  name: cluster-west-1
  labels:
    region: us-west

Resource that Generated Event Details

metadata:
  name: nginx-addon
  annotations:
    env: prod

Resulting ClusterProfile.spec.templateResourceRefs Details

templateResourceRefs:
  - kind: ConfigMap
    namespace: "platform-config"
    name: "us-west-prod"

Instantiation Flow: PolicyRefs

EventTrigger can reference ConfigMaps and Secrets in the policyRefs section.

Users can express ConfigMaps/Secret resources as templates. These are dynamically evaluated using the data from the triggering cluster and event resource.

Example: Dynamic policyRefs

We can express the policyRefs section as a template like the example below.

policyRefs:
  - kind: ConfigMap
    namespace: "{{ .Cluster.metadata.labels.region }}"
    name: "{{ .Resource.metadata.name }}-config"

The template values will be first instantiated based on the data from the triggering cluster and resource. For example, if the triggering cluster contains the label region=eu-central and a resource is named ingress-addon, the final policyRefs section will look like the below.

policyRefs:
  - kind: ConfigMap
    namespace: eu-central
    name: ingress-addon-config

After instantiation, EventTrigger fetches the corresponding ConfigMap/Secret based on the dynamically instantiated namespace and name.

Once fetched, Sveltos handles ConfigMap and Secret resources in two distinct ways, depending on specific annotations:

  1. If the resource does not have the annotation projectsveltos.io/instantiate set, the generated Sveltos ClusterProfile will directly reference the same fetched ConfigMap/Secret resource. If the annotation projectsveltos.io/template is set, the Sveltos addon controller will first instantiate the resource (meaning it will process any templates within it) before deploying it to any matching clusters.
  2. If a resource has the projectsveltos.io/instantiate annotation, the EventTrigger component will be responsible for creating a new ConfigMap or Secret. It will use the event resource's data along with information from the managed cluster where the event occurred. The resulting Sveltos ClusterProfile will then reference this newly instantiated ConfigMap/ Secret.

Example: EventTrigger.spec.policyRefs

EventTrigger.spec.policyRefs Template Details

policyRefs:
  - kind: ConfigMap
    namespace: "{{ .Cluster.metadata.labels.region }}"
    name: "{{ .Resource.metadata.name }}-config"

Triggering Cluster Details

metadata:
  labels:
    region: eu-central

Resource that Generated Event Details

metadata:
  name: ingress-addon

Instantiated Namespace and Name Details

namespace: eu-central
name: ingress-addon-config

Sveltos fetches the ConfigMap at eu-central/ingress-addon-config and processes it based on its annotations.

  • If projectsveltos.io/instantiate is absent, the Sveltos ClusterProfile spec.profileRefs will reference this one.
  • If projectsveltos.io/instantiate is present, the ConfigMap is instantiated by the EventTrigger using the cluster/event data, and the Sveltos ClusterProfile references this new resource.
    apiVersion: v1
    kind: ConfigMap
    metadata:
      name: network-policy
      namespace: default
      annotations:
        projectsveltos.io/instantiate: ok # this annotation is what tells Sveltos to instantiate this ConfigMap in the event context
    data:
      networkpolicy.yaml: |
        kind: NetworkPolicy
        apiVersion: networking.k8s.io/v1
        metadata:
          name: front-{{ .Resource.metadata.name }}
          namespace: {{ .Cluster.metadata.namespace }}
        spec:
          podSelector:
            matchLabels:
              {{ range $key, $value := .Resource.spec.selector }}
              {{ $key }}: {{ $value }}
              {{ end }}
          ingress:
            - from:
              - podSelector:
                  matchLabels:
                    app: internal
              ports:
                {{ range $port := .Resource.spec.ports }}
                - port: {{ $port.port }}
                {{ end }}

The approach enables context-aware policy injection based on dynamically generated resource names, enhancing automation and flexibility in multi-cluster operations.

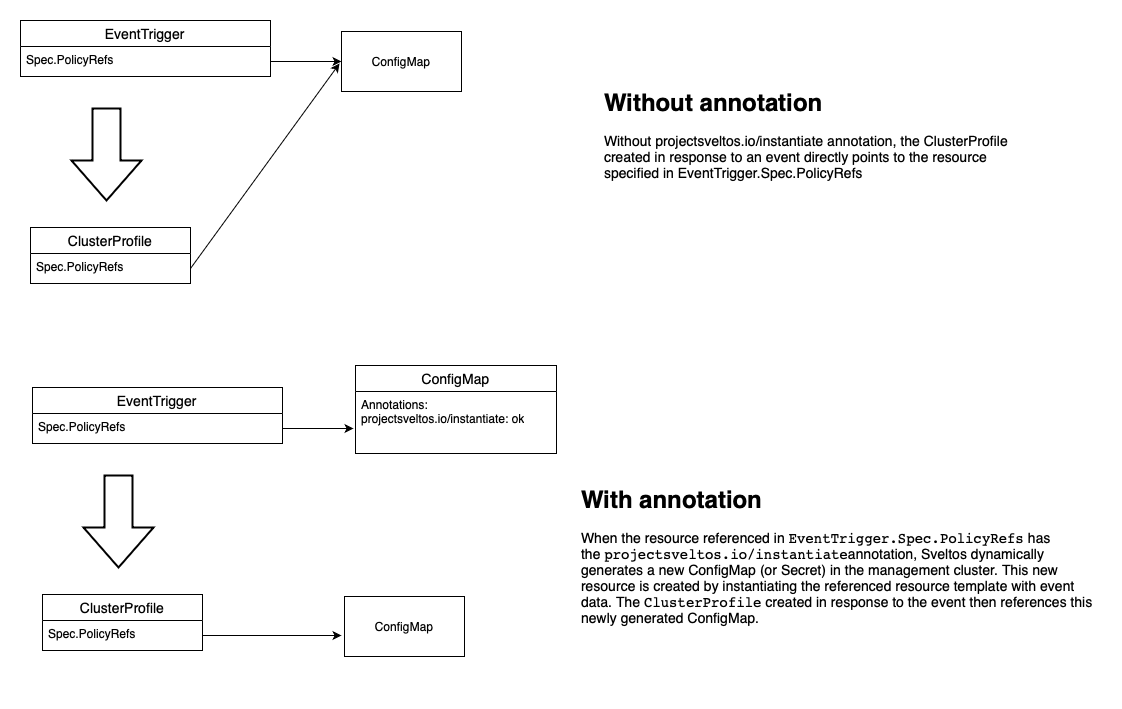

projectsveltos.io/instantiate annotation

Instantiation Flow: Helm Charts

In EventTrigger, the spec.helmCharts field defines which Helm charts should be applied when an event occurs. Each Helm chart entry can be defined in two ways.

  1. Constant: A fixed chart definition (e.g., chart name, repo, values, version).
  2. Template: A dynamic chart definition using Go templates, which are instantiated using data from the triggering cluster and/or event resource.

When Helm chart fields (such as name, version, or values) are defined as templates, EventTrigger evaluates them at runtime using the cluster and resource metadata that triggered the event. The resulting Helm chart specification is included in the generated Sveltos ClusterProfile, which uses these instantiated Helm chart definitions.

Example: EventTrigger.spec.helmCharts

EventTrigger.spec.helmCharts Details

helmCharts:
  - releaseName: my-namespace
    chartName: example
    repositoryURL: https://charts.example.com
    version: "1.0.0"
    values: |
      env: "{{ .Resource.metadata.annotations.env }}"
      region: "{{ .Cluster.metadata.labels.region }}"

Triggering Cluster Details

metadata:
  name: cluster-east
  labels:
    region: us-east

Resource that Generated Event Details

metadata:
  name: nginx-deployment
  annotations:
    env: staging

Resulting ClusterProfile.spec.helmCharts Details

helmCharts:
  - releaseName: my-namespace
    chartName: example
    repositoryURL: https://charts.example.com
    version: "1.0.0"
    values: |
      env: staging
      region: us-east

The templating capability makes Helm chart deployments flexible and context-aware, enabling dynamic customisation for different clusters or triggering resources, all managed declaratively.

Additionally, each Helm chart defined in EventTrigger.spec.helmCharts can use the valuesFrom field to reference external ConfigMaps/Secrets that contain Helm values. These references support templated namespace and name fields, just like in policyRefs.

Example: Dynamic EventTrigger.spec.helmCharts.valuesFrom

The namespace and name of the referenced ConfigMap/Secret in valuesFrom are first instantiated using templates. These templates can access any field from the triggering cluster or resource.

valuesFrom:
  kind: ConfigMap
  namespace: "{{ .Cluster.metadata.labels.region }}"
  name: "{{ .Resource.metadata.annotations.env }}-helm-values"

After instantiation, the referenced ConfigMap/Secret is fetched.

  • If the resource does not have the projectsveltos.io/instantiate annotation, the generated ClusterProfile.spec.helmCharts.valuesFrom will reference the same ConfigMap/Secret.
  • If the resource has the projectsveltos.io/instantiate annotation, Sveltos instantiates the content of the ConfigMap/Secret using the cluster and event data. A new ConfigMap/Secret is generated with the instantiated value. The generated ClusterProfile.spec.helmCharts.valuesFrom will reference the newly created ConfigMap/Secret.

The same logic applies to EventTrigger.spec.kustomizationRefs—fields.

Instantiation Flow: ClusterProfile Name

By default, the ClusterProfile instances created by the event framework are assigned random names. While this is acceptable for most use cases, a predictable name is required in scenarios where other resources must be set as dependent on the instantiated ClusterProfile. The random naming convention makes it impossible to reference these instances programmatically.

To address this challenge, the EventTrigger spec includes an optional field: InstantiatedProfileNameFormat. This field allows for the definition of a naming template that ensures a predictable name is generated for the ClusterProfile instance. The name is consistently formatted based on a Go template and can leverage data from the cluster and the specific event that triggered the creation.

In the example below, the template uses the cluster name and the name of the resource that triggered the event.

{{ .Cluster.metadata.name }}-{{ .Resource.metadata.name }}-test

When an event is triggered, Sveltos will automatically apply this template. For example, if the event occurs in a cluster named cluster-alpha and is triggered by a resource named pod-nginx, the resulting ClusterProfile will be named: cluster-alpha-pod-nginx-test.

Template Functions

Sveltos supports the template functions included from the Sprig open source project. The Sprig library provides over 70 template functions for Go’s template language. Some of the functions are listed below. For the full list, have a look at the Spring Github page.

  1. String Functions: trim, wrap, randAlpha, plural, etc.
  2. String List Functions: splitList, sortAlpha, etc.
  3. Integer Math Functions: add, max, mul, etc.
  4. Integer Slice Functions: until, untilStep
  5. Float Math Functions: addf, maxf, mulf, etc.
  6. Date Functions: now, date, etc.
  7. Defaults Functions: default, empty, coalesce, fromJson, toJson, toPrettyJson, toRawJson, ternary
  8. Encoding Functions: b64enc, b64dec, etc.
  9. Lists and List Functions: list, first, uniq, etc.
  10. Dictionaries and Dict Functions: get, set, dict, hasKey, pluck, dig, deepCopy, etc.
  11. Type Conversion Functions: atoi, int64, toString, etc.
  12. Path and Filepath Functions: base, dir, ext, clean, isAbs, osBase, osDir, osExt, osClean, osIsAbs
  13. Flow Control Functions: fail

Sveltos includes a dedicated set of functions for manipulating the resources that trigger events. These functions are designed to make it easy to work with Kubernetes resource data directly within your templates.

  1. getResource: Takes the resource that generated the event and returns a map[string]interface{} allowing to access any field of the resource. Following fields are automatically cleared: managedFields, resourceVersion and uid.
  2. copy: Creates a copy of the resource that generated the event.
  3. setField: Takes the resource that generated the event, the field name, and a new value. It returns a modified copy of the resource with the specified field updated.
  4. removeField: Takes the resource that generated the event and the field name. Returns a modified copy of the resource with the specified field removed.
  5. getField: Takes the resource that generated the event and the field name. Returns the field value
  6. chainSetField: This function acts as an extension of setField. It allows for chaining multiple field updates.
  7. chainRemoveField: Similar to chainSetField, this function allows for chaining multiple field removals.

Note

These functions operate on copies of the original resource, ensuring the original data remains untouched.

Here are some examples:

  # Use getResource to retrieve the triggering resource and store it in a temporary variable.
  # This variable will be used as the starting point for all subsequent modifications.
  # Fields managedFields, resourceVersion and uid are automatically cleared
  {{ $resource := getResource .Resource }}

  # Use chainSetField to modify the 'metadata.name' field.
  # This function returns the modified resource, allowing it to be chained with the next function.
  {{ $resource := chainSetField $resource "metadata.name" "new-name" }}

  # Use chainRemoveField to remove the 'data' field.
  # The previous changes are preserved as the function operates on the modified resource.
  {{ $resource := chainRemoveField $resource "data" }}

  # Finally, use the toYaml function to output the final, modified resource.
  # This will be the resource that is applied to the managed cluster.
  {{ toYaml $resource }}

Benefits

The EvenTrigger has access to the resource data and can use them to instantiate namespace/name of the TemplateResourceRefs field and the ConfigMap/Secret of the policyRefs field.

Once the EventTrigger is done creating the Sveltos ClusterProfile, the addon controller will take over and deploy it to the matching cluster(s). The addon controller does not have any access to the resource (only the EventTrigger has access to the resource). However, it can fetch any resource present in the management cluster which is defined in the TemplateResourceRefs field.

Next Steps

Continue with the Event Generators section located here.
