Example Sveltos and Crossplane for GitOps Bridge Pattern

Introduction

The example demonstrates how to integrate the Sveltos Event Framework together with the Crossplane provider for AWS to achieve the GitOps Bridge Pattern in a Kubernetes environment.

Crossplane is an open-source, CNCF tool that allows users to manage and provision cloud infrastructure using Kubernetes-style configuration files across multiple environments. For more information about Crossplane, check out the official website.

GitOps Bridge Pattern enables Kubernetes administrators to utilise Infrastructure as Code (IaC) and GitOps tools to deploy Kubernetes add-ons and applications across a fleet of clusters. Go through the GitHub repository to learn more about the pattern and its purpose.

Pre-requisites

  • A Kubernetes cluster acting as the management cluster
  • A GitOps controller is already available in the management cluster
  • Familiarity with the Sveltos Event Framework. If you are new to Sveltos, take a look at the "Quick Start" guide here
  • Basic familiarity with Crossplane
  • Fundamental knowledge of GitOps practices

How does it work?

To achieve the GitOps Bridge Pattern, a GitOps controller such as ArgoCD or Flux is deployed in the Sveltos management cluster. The YAML manifests (described in the sections below) are stored in a Git repository. The GitOps controller continuously monitors this repository and automatically applies any changes, ensuring the manifests in the Sveltos management cluster are always in sync with Git. This approach guarantees that the add-on deployments for managed clusters are versioned and auditable. Sveltos uses the updated resources to take care of the add-on deployment across the managed clusters. Sveltos has an integration with Flux; for more information, take a look here.

As part of the flow, Crossplane provisions the required infrastructure (e.g., IAM Role), and once ready, Sveltos observes it. Sveltos pre-instantiates the manifests deployed and performs actions only when the required infrastructure is ready. For more details about how the EventSource and EventTrigger work, have a look here.

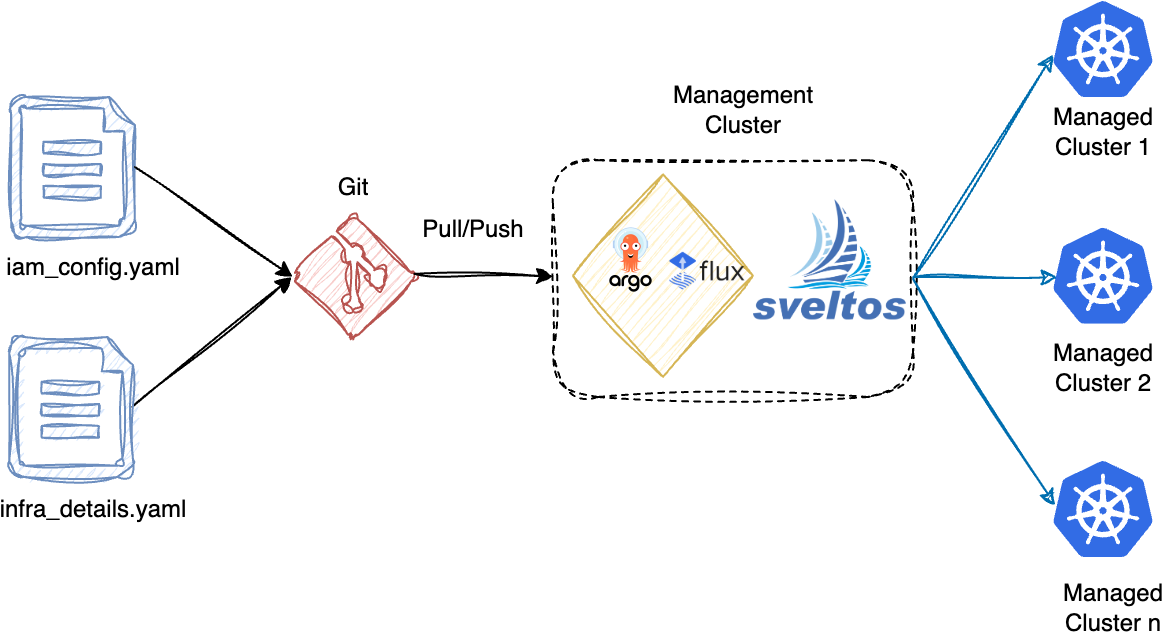

GitOps

Sveltos Event Framework and CrossPlane for GitOps Bridge Pattern

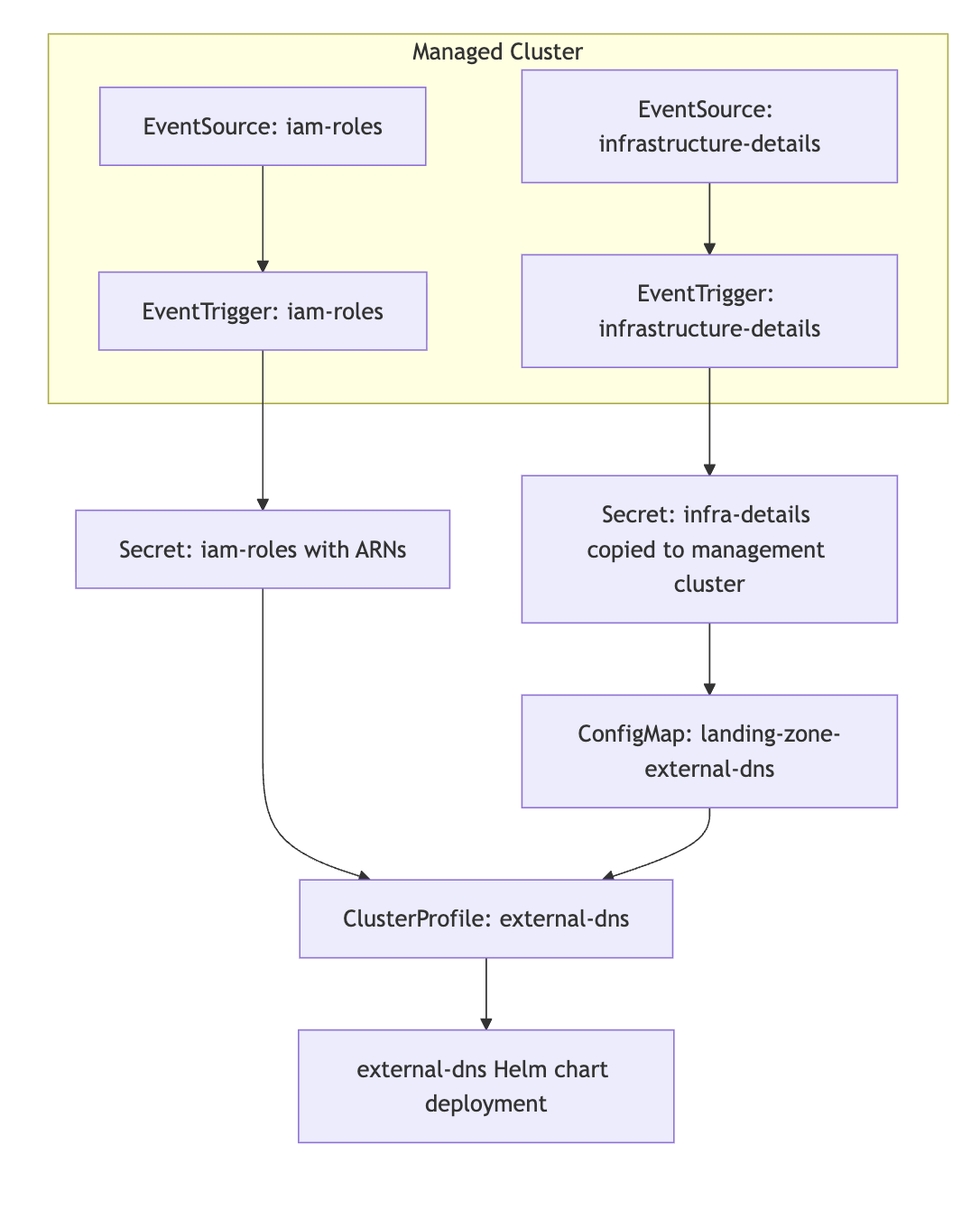

Managed Cluster Resources

Sveltos Event Framework and CrossPlane for GitOps Bridge Pattern

Key Objectives

  • Listen for Infrastructure Events: Use Sveltos EventSource and EventTrigger to monitor infrastructure events.
  • Copy Infrastructure Details: Synchronise relevant infrastructure details to the management cluster
  • Deploy IAM Roles for external-dns service: Provision Identity and Access Management (IAM) roles using Crossplane for the external-dns service
  • Trigger external-dns Deployment: Ensure external-dns is only deployed once the IAM roles are ready.

Advantages

The proposed pattern lets us use Sveltos to collect infrastructure details from the managed clusters and pass that information to Crossplane, which then deploys other resources like IAM Roles. This is useful for add-ons that need infrastructure components in place before they can be installed.

It’s like laying the foundation before building, ensuring all necessary infrastructure is in place and making add-on deployment smooth and reliable. The approach easily scales to support any number of add-ons that need infrastructure to be ready ahead of time.

Configuration Details

The iam_config.yaml and infra_details.yaml files need to be deployed in the Sveltos management clusters. Effectively, the Kubernetes cluster Sveltos is deployed.

Example - IAM Roles Configuration

cat > iam_config.yaml <<'EOF'
---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventSource
metadata:
  name: iam-roles
spec:
  collectResources: true
  resourceSelectors:
    - group: "iam.aws.upbound.io"
      version: "v1beta1"
      kind: "Role"
      evaluateCEL:
        - name: "externalDnsRole"
          rule: has(resource.status.atProvider.arn) && resource.metadata.name == "external-dns-role"
---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventTrigger
metadata:
  name: iam-roles
spec:
  sourceClusterSelector:
    matchLabels:
      environment: landing-zone
  eventSourceName: iam-roles
  oneForEvent: false
  syncMode: ContinuousWithDriftDetection
  secretGenerator:
    - name: iam-roles
      namespace: projectsveltos
      nameFormat: "{{ .Cluster.metadata.name }}-iam-roles"
  templateResourceRefs:
    - resource:
        apiVersion: v1
        kind: Secret
        name: "{{ .Cluster.metadata.name }}-infra-details"
        namespace: projectsveltos
      identifier: InfrastructureDetails
---
apiVersion: v1
kind: Secret
metadata:
  name: iam-roles
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: "true"
type: addons.projectsveltos.io/cluster-profile
stringData:
  resources: |
    {{- range $resource := .Resources }}
    {{- if eq $resource.kind "Role" }}
    "{{ $resource.metadata.name }}": {{ $resource.status.atProvider.arn}}
    {{- end }}
    {{- end }}
---
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: external-dns
spec:
  syncMode: ContinuousWithDriftDetection
  templateResourceRefs:
    - resource:
        apiVersion: v1
        kind: Secret
        name: "{{ .Cluster.metadata.name }}-iam-roles"
        namespace: projectsveltos
      identifier: IamRoles
  helmCharts:
    - chartName: external-dns/external-dns
      chartVersion: "1.18.0"
      helmChartAction: Install
      releaseName: external-dns
      releaseNamespace: external-dns
      repositoryName: external-dns
      repositoryURL: https://kubernetes-sigs.github.io/external-dns/
      valuesFrom:
        - kind: ConfigMap
          name: external-dns-default-values
          namespace: projectsveltos
          optional: true
        - kind: ConfigMap
          name: external-dns-{{- if index .Cluster.metadata.labels `environment` -}}{{- index .Cluster.metadata.labels `environment` -}}{{- end -}}-values
          namespace: projectsveltos
          optional: true
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: external-dns-landing-zone-values
  namespace: projectsveltos
  annotations:
    projectsveltos.io/template: "true"
data:
  values: |
    {{- /* Get the generated Secret (IamRoles) */ -}}
    {{- $resource := (getResource "IamRoles") -}}
    {{- $raw := index $resource.data "resources" -}}
    {{- $decoded := b64dec $raw | trim -}}
    {{- $parsed := fromYaml $decoded | default (fromJson $decoded) -}}
    {{- $externalDnsRoleArn := index $parsed "external-dns-role" -}}

    provider: aws
    serviceAccount:
      name: "external-dns-sa"
      annotations:
        eks.amazonaws.com/role-arn: "{{ $externalDnsRoleArn }}"
    domainFilters:
      - {{ index $parsed "hosted_zone_name" }}
    txtOwnerId: {{ .Cluster.metadata.name }}
    policy: sync
EOF

The above YAML snippet is an advanced use-case configuration, but this is what happens after deploying the YAML file to the Sveltos management cluster. The description starts following the top-to-bottom approach.

  1. Monitor for IAM Roles: Sveltos watches the managed clusters for IAM Role resources named external-dns-role that have an Amazon Resource Name (ARN) available
  2. Collect Role Details: When such a role is found in a cluster labelled as environment=landing-zone, Sveltos collects the required details
  3. Store in a Secret: The IAM Role information (like the ARN) is automatically copied into a Secret in the management cluster
  4. Trigger Addon Deployment: The Sveltos ClusterProfile named external-dns uses this Secret to deploy the external-dns Helm chart, ensuring it only happens when the IAM Role is ready

The power of this setup? It ensures the external-dns is safely and automatically installed with the right permissions across all clusters that match the label environment=landing-zone.

Example - Infrastructure Details Configuration

cat > infra_details.yaml <<'EOF'
---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventSource
metadata:
  name: infrastructure-details
spec:
  collectResources: true
  resourceSelectors:
    - group: ""
      version: "v1"
      kind: "Secret"
      name: "infrastructure-details"
      namespace: kube-system
---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventTrigger
metadata:
  name: infrastructure-details
spec:
  sourceClusterSelector:
    matchLabels:
      environment: landing-zone
  eventSourceName: infrastructure-details
  oneForEvent: false
  syncMode: ContinuousWithDriftDetection
  secretGenerator:
    - name: infrastructure-details
      namespace: projectsveltos
      nameFormat: "{{ .Cluster.metadata.name }}-infra-details"
  templateResourceRefs:
    - resource:
        apiVersion: v1
        kind: Secret
        name: "{{ .Cluster.metadata.name }}-infra-details"
        namespace: projectsveltos
      identifier: InfrastructureDetails
  policyRefs:
    - kind: ConfigMap
      name: landing-zone-external-dns
      namespace: projectsveltos
    - kind: ConfigMap
      name: landing-zone-external-secrets
      namespace: projectsveltos
---
apiVersion: v1
kind: Secret
metadata:
  name: infrastructure-details
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: "true"
type: addons.projectsveltos.io/cluster-profile
stringData:
  resources: |
    {{- range $resource := .Resources }}
    "{{ $resource.metadata.name }}": |
      {{ toJson $resource | trim | indent 6 }}
    {{- end }}
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: landing-zone-external-dns
  namespace: projectsveltos
  annotations:
    projectsveltos.io/template: "true"
data:
  external-dns-role.yaml: |
    {{- /* Get the generated Secret (InfrastructureDetails) */ -}}
    {{- $resource := (getResource "InfrastructureDetails") -}}
    {{- $raw := index $resource.data "resources" -}}
    {{- $decoded := b64dec $raw | trim -}}
    {{- $parsed := fromYaml $decoded | default (fromJson $decoded) -}}
    {{- $res := index $parsed "infrastructure-details" | fromJson -}}
    {{- $anns := index $res "metadata" "annotations" | default dict -}}
    {{- $oidcProvider := index $anns "oidc_provider" | default "not-found" }}
    {{- $oidcProviderArn := index $anns "oidc_provider_arn" | default "not-found" }}
    apiVersion: iam.aws.upbound.io/v1beta1
    kind: Role
    metadata:
      name: external-dns-role
    spec:
      forProvider:
        assumeRolePolicy: |-
          {
            "Version": "2012-10-17",
            "Statement": [
              {
                "Effect": "Allow",
                "Principal": {
                  "Federated": "{{ $oidcProviderArn }}"
                },
                "Action": "sts:AssumeRoleWithWebIdentity",
                "Condition": {
                  "StringEquals": {
                    "{{ $oidcProvider }}:aud": "sts.amazonaws.com",
                    "{{ $oidcProvider }}:sub": "system:serviceaccount:external-dns:external-dns-sa"
                  }
                }
              }
            ]
          }
  external-dns-rolepolicy.yaml: |
    apiVersion: iam.aws.upbound.io/v1beta1
    kind: RolePolicy
    metadata:
      name: external-dns-role
    spec:
      forProvider:
        roleRef:
          name: external-dns-role
        policy: |
          {
            "Version": "2012-10-17",
            "Statement": [
              {
                "Effect": "Allow",
                "Action": [
                  "route53:ChangeResourceRecordSets"
                ],
                "Resource": [
                  "arn:aws:route53:::hostedzone/*"
                ]
              },
              {
                "Effect": "Allow",
                "Action": [
                  "route53:ListHostedZones",
                  "route53:ListResourceRecordSets",
                  "route53:ListTagsForResource"
                ],
                "Resource": [
                  "*"
                ]
              }
            ]
          }
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: landing-zone-external-secrets
  namespace: projectsveltos
  annotations:
    projectsveltos.io/template: "true"
data:
  external-secrets-role.yaml: |
    apiVersion: iam.aws.upbound.io/v1beta1
    kind: Role
    metadata:
      name: external-secrets-role
    spec:
      forProvider:
        assumeRolePolicy: |-
          {
            "Version": "2012-10-17",
            "Statement": [
              {
                "Sid": "AllowEksAuthToAssumeRoleForPodIdentity",
                "Effect": "Allow",
                "Principal": {
                  "Service": "pods.eks.amazonaws.com"
                },
                "Action": [
                  "sts:AssumeRole",
                  "sts:TagSession"
                ]
              }
            ]
          }
  external-secrets-rolepolicy.yaml: |
    apiVersion: iam.aws.upbound.io/v1beta1
    kind: RolePolicy
    metadata:
      name: external-secrets-role
    spec:
      forProvider:
        roleRef:
          name: external-secrets-role
        policy: |
          {
            "Statement": [
              {
                "Action": "ssm:DescribeParameters",
                "Effect": "Allow",
                "Resource": "*"
              },
              {
                "Action": [
                  "ssm:GetParameters",
                  "ssm:GetParameter"
                ],
                "Effect": "Allow",
                "Resource": "arn:aws:ssm:*:*:parameter/platform/*"
              },
              {
                "Action": "secretsmanager:ListSecrets",
                "Effect": "Allow",
                "Resource": "*"
              },
              {
                "Action": [
                  "secretsmanager:ListSecretVersionIds",
                  "secretsmanager:GetSecretValue",
                  "secretsmanager:GetResourcePolicy",
                  "secretsmanager:DescribeSecret",
                  "secretsmanager:BatchGetSecretValue"
                ],
                "Effect": "Allow",
                "Resource": "arn:aws:secretsmanager:*:*:secret:/platform/*"
              },
              {
                "Action": "kms:Decrypt",
                "Effect": "Allow",
                "Resource": "arn:aws:kms:*:*:key/*"
              }
            ],
            "Version": "2012-10-17"
          }
EOF

Continuing with the infrastructure details, this is what happens after deploying the YAML file to the Sveltos management cluster. The description starts following the top-to-bottom approach.

  1. Watch for Infrastructure Details: Sveltos monitors the managed clusters for the Secret named infrastructure-details in the kube-system namespace
  2. Collect and Copy Information: When the Secret is found in clusters with the label set to environment=landing-zone, Sveltos gathers its contents and copies them into a new Secret in the management cluster
  3. Make Details Available to Addons: This copied Secret provides infrastructure details which are required for the setup
  4. Trigger Policy Templates: The configuration references ConfigMaps containing templates for IAM roles and policies for addons like external-dns and external-secrets

The power of Sveltos' advanced Templating allows Kubernetes administrators to automatically generate and configure the correct IAM roles and policies for each cluster, ensuring addons have the permissions and settings they require.

$ export KUBECONFIG=</dir/to/Sveltos/management/cluster/kubeconfig>
$ kubectl apply -f iam_config.yaml,infra_details.yaml

Rendered Output Secret

# Example of generated Secret (for IAM roles)
apiVersion: v1
kind: Secret
metadata:
  name: "example-iam-roles"
  namespace: projectsveltos
type: addons.projectsveltos.io/cluster-profile
stringData:
  resources: |
    "external-dns-role": arn:aws:iam::1234567890:role/external-dns-role
