Cluster API on Docker

Scenario

In previous scenarios, Cluster API on EKS and Cluster API on Azure, we demonstrated how easy it is to deploy Kubernetes clusters across different hyperscalers using Sveltos and following a GitOps approach. But there are times when we need a local development environment running on a local machine using Docker.

In this post, we will outline how to automate local development environments using Docker, Kind, Cluster API (CAPI), and Sveltos!

If you are not familiar with CAPI, take a look at the CAPI Github repository and the getting started guide.

Github Resources

The full code examples are located in the GitHub repository.

Diagram

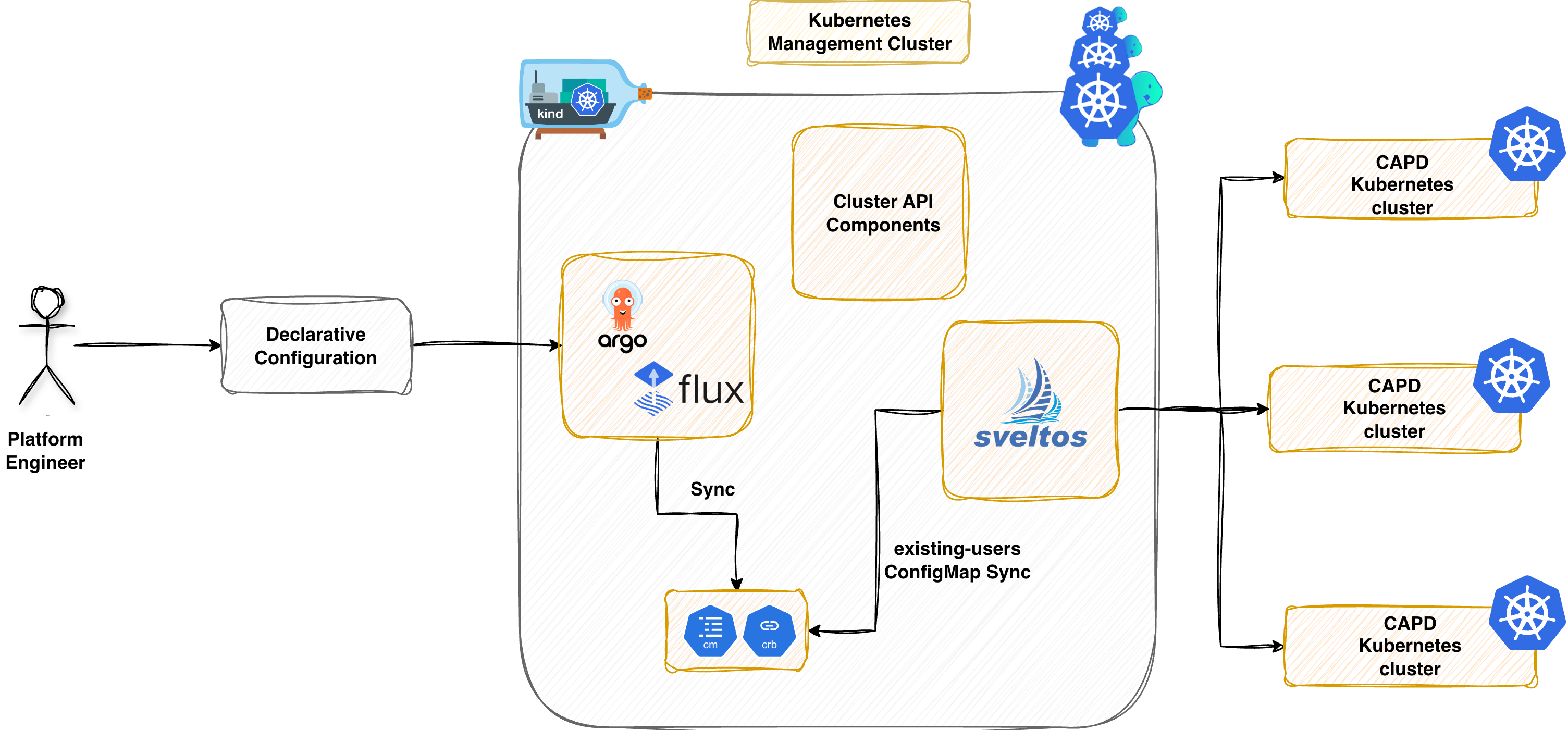

Sveltos and Cluster API on Docker

Prerequisites

  • Docker and Kind are installed
  • kubectl installed
  • clusterctl installed
  • Familiarity with CAPI

Step 1: Create a Kind Management Cluster

As mentioned in the beginning, we can work on local development environments. For that reason, we will create a Kind cluster that can run on top of Docker.

cat > kind-cluster-with-extramounts.yaml <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
name: mgmt
nodes:
- role: control-plane
  extraMounts:
    - hostPath: /var/run/docker.sock
      containerPath: /var/run/docker.sock
EOF

$ kind create cluster --config kind-cluster-with-extramounts.yaml --kubeconfig=/path/to/store/kubeconfig

$ export KUBECONFIG=/path/to/mgmt/kubeconfig

Step 2: Initialise and Deploy CAPI Management Cluster

Let us begin by deploying CAPI using the Docker Infrastructure Provider.

$ export CLUSTER_TOPOLOGY=true # Used to enable support for managed topologies and ClusterClass
$ clusterctl init --infrastructure docker

Step 3: Install ArgoCD on the Management Cluster

There are different ways to install ArgoCD on a Kubernetes cluster. For this demonstration, we will use the simplest option, the manifest installation. For more information about the different ArgoCD installation options, have a look here.

$ kubectl create namespace argocd
$ kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
$ kubectl config set-context --current --namespace=argocd
$ kubectl port-forward svc/argocd-server -n argocd 8080:443 # Optional to get a glimpse of the ArgoCD UI

Note

The admin password for the ArgoCD dashboard is in the Secret called argocd-initial-admin-secret in the argocd namespace.

Step 4: Deploy Sveltos

We will leverage ArgoCD to automate the deployment of Sveltos to our management Kubernetes cluster.

$ argocd app create sveltos --repo https://github.com/projectsveltos/helm-charts.git --path charts/projectsveltos --dest-server https://kubernetes.default.svc --dest-namespace projectsveltos

Then, we will use the ArgoCD Application resource to set the location of our configuration related to CAPI and Sveltos. This will ensure ArgoCD deploys the configuration to the management cluster and keeps any code changes up to date.

$ argocd app create sveltos-configuration --repo https://github.com/egrosdou01/blog-post-resources.git --path capi-azure-sveltos/pt3/ --dest-server https://kubernetes.default.svc

The Sveltos configuration establishes a dynamic cluster creation process. Sveltos monitors a ConfigMap named existing-users in the default namespace. The resource keeps a list of users. Each entry shows the user's name, the type of environment, and the CAPI version to be deployed. When Sveltos spots a new user entry, it triggers the deployment of a CAPI configuration and creates a managed Kubernetes cluster in the Azure cloud.

To allow Sveltos to manage resources in the Kubernetes management cluster, we will add the label type: mgmt to the cluster.

$ kubectl label sveltoscluster mgmt -n mgmt type=mgmt

Step 4: Push a PR/Merge Request to add a new user

To add a new user and trigger the creation of a corresponding Kubernetes cluster on Docker, we will implement a straightforward GitOps workflow. We will submit a Pull Request (PR)/Merge Request that modifies the existing-users ConfigMap within the previously defined repository. The PR will introduce a new user entry, user01: test, within the data section of the ConfigMap.

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: existing-users
  namespace: default
data:
  user01: |
    env: test
  # user02: |
  #   env: staging

Once the PR is merged, ArgoCD will synchronise the changes to the Kubernetes management cluster. The synchronisation updates the ConfigMap. This signals Sveltos to start provisioning a new Kubernetes cluster for user01 using CAPI.

Step 5: Install Cilium as Container Network Interface (CNI)

By the time one of the controller nodes is available and the kube-api is reachable, Sveltos installs Cilium as our CNI. Everything is controlled by Sveltos using the below ClusterProfile, and there is no need for manual interventions.

---
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: deploy-capd-managed
spec:
  clusterSelector:
    matchExpressions:
    - { key: env, operator: In, values: [ test, staging ] }
  syncMode: Continuous
  helmCharts:
  - chartName: cilium/cilium
    chartVersion: 1.18.5
    helmChartAction: Install
    releaseName: cilium
    releaseNamespace: kube-system
    repositoryName: cilium
    repositoryURL: https://helm.cilium.io/
    values: |
      kubeProxyReplacement: true

Step 6: Remove a User

To remove a user, update the existing-users ConfigMap. Then, submit a PR and merge the code. After that, let ArgoCD sync the change to the management cluster. Sveltos will handle the rest! Again, no magic, only Sveltos goodness!

Conclusion

In a few steps, we demonstrated how engineers can use Sveltos with CAPI on Docker following a GitOps approach to create scalable, maintainable, and easily managed Kubernetes clusters with versioned, auditable deployments.
