Example Loadbalancer

This guide demonstrates how to automate load balancer configuration for Kubernetes services using Sveltos EventTrigger and EventSource.

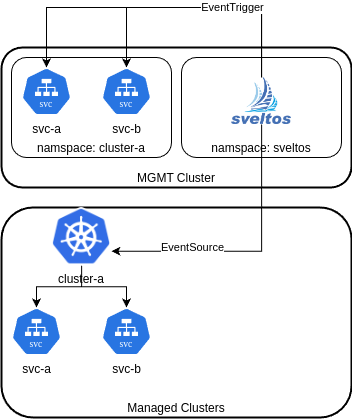

Architecutre Overview

Architecutre Overview There are two clusters involved: a "MGMT Cluster" and a "Managed Cluster" (cluster-a). Cluster-a hosts two services: svc-a and svc-b.

apiVersion: v1
kind: Service
metadata:
  labels:
    lb.buttah.cloud/class: internet
  name: svc-a
  namespace: test
spec:
  type: LoadBalancer
  ports:
  - name: test
    port: 1234
    protocol: TCP
    targetPort: test
  selector:
    app.kubernetes.io/name: test
The "MGMT Cluster" runs a CNI that implements a load balancer for services of type LoadBalancer. This implementation supports the lb.buttah.cloud/class label with values intern or internet.

EventSource

To implement the load balancer solution, an EventSource is required to listen for new services. This example filters only for Services with the label lb.buttah.cloud/class.

# deploy on MGMT Cluster
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventSource
metadata:
  name: loadbalancer-class-handler
spec:
  collectResources: true
  resourceSelectors:
  - group: ""
    version: "v1"
    kind: "Service"
    evaluate: |
      function evaluate()
        hs = {}
        hs.matching = false
        if obj.metadata.labels["lb.buttah.cloud/class"] ~= nil then
          hs.matching = true
          return hs
        end
        return hs
      end

EventTrigger

After deploying an EventSource, an EventTrigger is needed. The EventTrigger listens to a specific EventSource and can produce new resources based on the event. This is achieved through EventTrigger.spec.policyRefs.

In this case, two new resources are created based on the content of two ConfigMaps: loadbalancer-class-handler-svc and loadbalancer-class-handler-cp. The ConfigMap loadbalancer-class-handler-svc will create a new Service by copying the Service.spec from the resource that triggered the EventTrigger (this example of svc-a from cluster-a). This can be done using the variable {{ .Resource }}.

To deploy the new resource to the "MGMT Cluster", set EventTrigger.spec.policyRefs[].deploymentType to Local. The new resource should be deployed in the associated namespace of the "Managed Cluster" using the variable {{ .Cluster }}.

# deploy on MGMT Cluster
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventTrigger
metadata:
  name: loadbalancer-class-handler
spec:
  sourceClusterSelector:
    matchLabels:
      env: prod
  eventSourceName: loadbalancer-class-handler
  oneForEvent: true
  policyRefs:
  - kind: ConfigMap
    name: loadbalancer-class-handler-svc
    namespace: projectsveltos
    deploymentType: Local
  - kind: ConfigMap
    name: loadbalancer-class-handler-cp
    namespace: projectsveltos
    deploymentType: Local
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-svc
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: ok
data:
  service.yaml: |
    kind: Service
    apiVersion: v1
    metadata:
      name: "lb-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
      namespace: "{{ .Cluster.metadata.namespace }}"
      labels:
        lb.buttah.cloud/class: "{{ get .Resource.metadata.labels `lb.buttah.cloud/class` }}"
        lb.buttah.cloud/cluster: "{{ .Cluster.metadata.name }}"
      annotations:
        lb.buttah.cloud/name: "{{ .Resource.metadata.name }}"
        lb.buttah.cloud/namespace: "{{ .Resource.metadata.namespace }}"
    spec:
      ports:
        {{- range $port := .Resource.spec.ports }}
        - name: "{{ $port.name }}"
          port: {{ $port.port }}
          protocol: "{{ $port.protocol }}"
          targetPort: {{ $port.nodePort }}
        {{- end }}
      selector:
        cluster.x-k8s.io/cluster-name: "{{ .Cluster.metadata.name }}"
      type: LoadBalancer
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-cp
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: ok
data:
  cp.yaml: |
    apiVersion: config.projectsveltos.io/v1beta1
    kind: ClusterProfile
    metadata:
      name: "lbs-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
      annotations:
        lb.buttah.cloud/name: "{{ .Resource.metadata.name }}"
        lb.buttah.cloud/namespace: "{{ .Resource.metadata.namespace }}"
    spec:
      clusterRefs:
      - apiVersion: lib.projectsveltos.io/v1beta1
        kind: SveltosCluster
        name: "{{ .Cluster.metadata.name }}"
        namespace: "{{ .Cluster.metadata.namespace }}"
      templateResourceRefs:
      - identifier: UpstreamLB
        resource:
          apiVersion: v1
          kind: Service
          name: "lb-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
          namespace: "{{ .Cluster.metadata.namespace }}"
      policyRefs:
      - kind: ConfigMap
        name: loadbalancer-class-handler-status
        namespace: projectsveltos
        deploymentType: Remote

Here is an example ClusterProfile and ConfigMaps which are generated for svc-a from the obove EventTrigger in order to deploy the Service on the "MGMT Cluster". These ClusterProfile are then normally executed by the addon-manager.

#  generated Ressource on MGMT Cluster from EventTrigger
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: sveltos-2z2p8p7olrro79biygp8
spec:
  clusterRefs:
  - apiVersion: lib.projectsveltos.io/v1beta1
    kind: SveltosCluster
    name: a
    namespace: cluster-a
  policyRefs:
  - deploymentType: Local
    kind: ConfigMap
    name: sveltos-8dem6v44g95u8lh5oi55
    namespace: projectsveltos
  - deploymentType: Local
    kind: ConfigMap
    name: sveltos-uad8ick2n9mrde65usds
    namespace: projectsveltos
status:
  matchingClusters:
  - apiVersion: lib.projectsveltos.io/v1beta1
    kind: SveltosCluster
    name: a
    namespace: cluster-a
---
apiVersion: v1
data:
  service.yaml: |
    kind: Service
    apiVersion: v1
    metadata:
      name: "lb-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672"
      namespace: "cluster-a"
      labels:
        lb.buttah.cloud/class: "internet"
        lb.buttah.cloud/cluster: "a"
      annotations:
        lb.buttah.cloud/name: "svc-a"
        lb.buttah.cloud/namespace: "default"
    spec:
      ports:
        - name: "test"
          port: 1234
          protocol: "TCP"
          targetPort: 1111
      selector:
          cluster.x-k8s.io/cluster-name: "a"
      type: LoadBalancer
kind: ConfigMap
metadata:
  name: sveltos-8dem6v44g95u8lh5oi55
---
apiVersion: v1
data:
  cp.yaml: |
    apiVersion: config.projectsveltos.io/v1beta1
    kind: ClusterProfile
    metadata:
      name: "lbs-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672"
      annotations:
        lb.buttah.cloud/name: "svc-a"
        lb.buttah.cloud/namespace: "default"
    spec:
      clusterRefs:
      - apiVersion: lib.projectsveltos.io/v1beta1
        kind: SveltosCluster
        name: "a"
        namespace: "cluster-a"
      templateResourceRefs:
      - identifier: UpstreamLB
        resource:
          apiVersion: v1
          kind: Service
          name: "lb-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672"
          namespace: "cluster-a"
      policyRefs:
      - kind: ConfigMap
        name: loadbalancer-class-handler-status
        namespace: projectsveltos
        deploymentType: Remote
kind: ConfigMap
metadata:
  name: sveltos-uad8ick2n9mrde65usds

After the addon-manager executes both ClusterProfiles, the following resources are deployed on the "MGMT Cluster." The load balancer implementation on the "MGMT Cluster" will assign an IP to the service, in this case, 1.1.1.1. Another ClusterProfile is responsible for reporting the IP back to the "Managed Clusters" (cluster-a). To patch the IP back, the ClusterProfile uses a ConfigMap with the annotation projectsveltos.io/subresources set to status, indicating to the addon-manager to patch this on the subresource status on the Kubernetes API on the "Managed Clusters" (cluster-a). The field EventTrigger.spec.templateResourceRefs is used to add a depended object which Information can be used in the ConfigMap in this example you can access the deployed the Service on the MGMT Cluster status using variable UpstreamLB.

# Service Deployed on MGMT Cluster from addon-manager
apiVersion: v1
kind: Service
metadata:
  labels:
    lb.buttah.cloud/class: internet
  name: lb-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672
  namespace: cluster-a
spec:
  type: LoadBalancer
  ports:
  - name: test
      port: 1234
      protocol: TCP
      targetPort: test
  selector:
      cluster.x-k8s.io/cluster-name: "cluster-a"
status:
  loadBalancer:
    ingress:
    - ip: 1.1.1.1
---
# ClusterProfile deployed on MGMT CLuster from addon-manager
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: "lbs-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672"
  annotations:
    lb.buttah.cloud/name: "svc-a"
    lb.buttah.cloud/namespace: "default"
spec:
  clusterRefs:
  - apiVersion: lib.projectsveltos.io/v1beta1
    kind: SveltosCluster
    name: "cluster-a"
    namespace: "cluster-a"
  templateResourceRefs:
  - identifier: UpstreamLB
    resource:
      apiVersion: v1
      kind: Service
      name: "lb-894cbba1a1a9a95d0bdb13e08dbbeb6db3f2e672"
      namespace: "cluster-a"
  policyRefs:
  - kind: ConfigMap
    name: loadbalancer-class-handler-status
    namespace: projectsveltos
    deploymentType: Remote
---
# ConfigMap with Patch definition to be deployed on cluster-a
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-status
  namespace: projectsveltos
  annotations:
    projectsveltos.io/template: ok
    projectsveltos.io/subressources: "status"
data:
  service.yaml: |
    kind: Service
    apiVersion: v1
    metadata:
      name: {{ get (getResource "UpstreamLB").metadata.annotations `lb.buttah.cloud/name` }}
      namespace: {{ get (getResource "UpstreamLB").metadata.annotations `lb.buttah.cloud/namespace` }}
    status:
      loadBalancer:
        ingress:
          {{- range $ingress := (getResource "UpstreamLB").status.loadBalancer.ingress }}
          - ip: "{{ $ingress.ip }}"
          {{- end }}

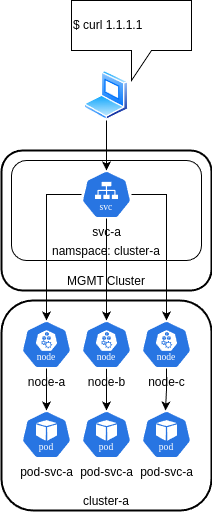

Data Path

Data Path

At the end the Service svc-a on the MGMT Cluster will announce the IP 1.1.1.1 to the outside world. Thus a Client can access it. The backend Service for svc-a on the MGMT Cluster is set to the nodes for cluster-a. Thus the traffic gets forwarded to these nodes using the node-port defined in the svc-a on cluster-a.

Full Code to deploy

apiVersion: lib.projectsveltos.io/v1beta1
kind: EventSource
metadata:
  name: loadbalancer-class-handler
spec:
  collectResources: true
  resourceSelectors:
  - group: ""
    version: "v1"
    kind: "Service"
    evaluate: |
      function evaluate()
        hs = {}
        hs.matching = false
        if obj.metadata.labels["lb.buttah.cloud/class"] ~= nil  then
          hs.matching = true
          return hs
        end
        return hs
      end
---
apiVersion: lib.projectsveltos.io/v1beta1
kind: EventTrigger
metadata:
  name: loadbalancer-class-handler
spec:
  sourceClusterSelector:
    matchLabels:
      env: prod
  eventSourceName: loadbalancer-class-handler
  oneForEvent: true
  policyRefs:
  - kind: ConfigMap
    name: loadbalancer-class-handler-svc
    namespace: projectsveltos
    deploymentType: Local
  - kind: ConfigMap
    name: loadbalancer-class-handler-cp
    namespace: projectsveltos
    deploymentType: Local
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-svc
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: ok
data:
  service.yaml: |
    kind: Service
    apiVersion: v1
    metadata:
      name: "lb-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
      namespace: "{{ .Cluster.metadata.namespace }}"
      labels:
        lb.buttah.cloud/class: "{{ get .Resource.metadata.labels `lb.buttah.cloud/class` }}"
        lb.buttah.cloud/cluster: "{{ .Cluster.metadata.name }}"
      annotations:
        lb.buttah.cloud/name: "{{ .Resource.metadata.name }}"
        lb.buttah.cloud/namespace: "{{ .Resource.metadata.namespace }}"
    spec:
      ports:
        {{- range $port := .Resource.spec.ports }}
        - name: "{{ $port.name }}"
          port: {{ $port.port }}
          protocol: "{{ $port.protocol }}"
          targetPort: {{ $port.nodePort }}
        {{- end }}
      selector:
        cluster.x-k8s.io/cluster-name: "{{ .Cluster.metadata.name }}"
      type: LoadBalancer
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-cp
  namespace: projectsveltos
  annotations:
    projectsveltos.io/instantiate: ok
data:
  cp.yaml: |
    apiVersion: config.projectsveltos.io/v1beta1
    kind: ClusterProfile
    metadata:
      name: "lbs-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
      annotations:
        lb.buttah.cloud/name: "{{ .Resource.metadata.name }}"
        lb.buttah.cloud/namespace: "{{ .Resource.metadata.namespace }}"
    spec:
      clusterRefs:
      - apiVersion: lib.projectsveltos.io/v1beta1
        kind: SveltosCluster
        name: "{{ .Cluster.metadata.name }}"
        namespace: "{{ .Cluster.metadata.namespace }}"
      templateResourceRefs:
      - identifier: UpstreamLB
        resource:
          apiVersion: v1
          kind: Service
          name: "lb-{{ cat .Resource.metadata.name .Resource.metadata.namespace .Cluster.metadata.name | sha1sum }}"
          namespace: "{{ .Cluster.metadata.namespace }}"
      policyRefs:
      - kind: ConfigMap
        name: loadbalancer-class-handler-status
        namespace: projectsveltos
        deploymentType: Remote
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: loadbalancer-class-handler-status
  namespace: projectsveltos
  annotations:
    projectsveltos.io/template: ok
    projectsveltos.io/subressources: "status"
data:
  service.yaml: |
    kind: Service
    apiVersion: v1
    metadata:
      name: {{ get (getResource "UpstreamLB").metadata.annotations `lb.buttah.cloud/name` }}
      namespace: {{ get (getResource "UpstreamLB").metadata.annotations `lb.buttah.cloud/namespace` }}
    status:
      loadBalancer:
        ingress:
          {{- range $ingress := (getResource "UpstreamLB").status.loadBalancer.ingress }}
          - ip: "{{ $ingress.ip }}"
          {{- end }}
