Configuration Drift detection

Configuration Drift

Configuration drift is a commonly used term to describe a change that takes place in an environment. Drift is an issue as it causes systems and parts of a system which supposed to be consistent, to become inconsistent and unpredictable. In our case, configuration drift is a change of a resource deployed by Sveltos down the managed clusters.

Sveltos allows users to set the sync mode within a ClusterProfile to ContinuousWithDriftDetection. It enables Sveltos to monitor the state of managed clusters and detect configuration drift for any of the resources deployed by a ClusterProfile.

---
apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: deploy-kyverno
spec:
  syncMode: ContinuousWithDriftDetection
  helmCharts:
  - repositoryURL:    https://kyverno.github.io/kyverno/
    repositoryName:   kyverno
    chartName:        kyverno/kyverno
    chartVersion:     v3.3.3
    releaseName:      kyverno-latest
    releaseNamespace: kyverno
    helmChartAction:  Install

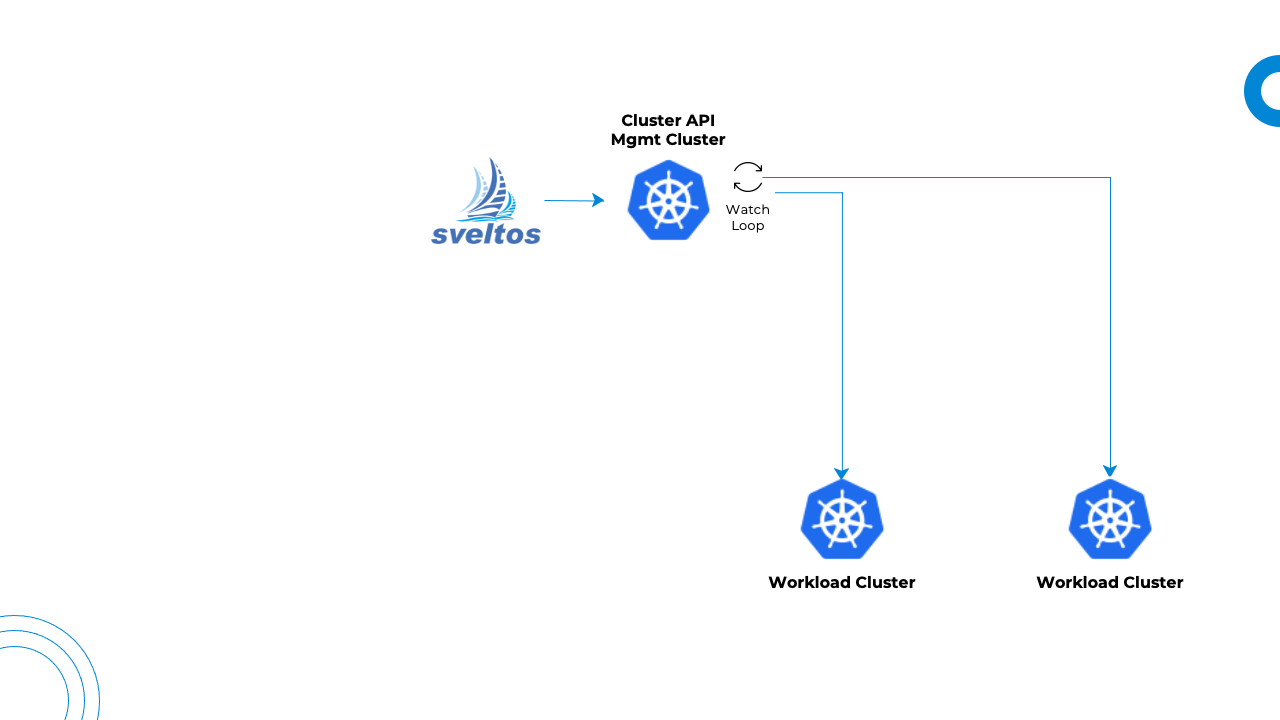

When Sveltos detects a configuration drift, it will automatically re-sync the cluster state back to its original state which is described in the management cluster. What actually happens, Sveltos deploys a service in each managed cluster and configures it with a list of Kubernetes resources deployed for each ClusterProfile in SyncModeContinuousWithDriftDetection mode. The service starts a watcher for each GroupVersionKind with at least one resource to watch. When any watched resources are modified (labels, annotations, spec or rules sections), the service notifies the management cluster about potential configuration drifts. The management cluster then reacts by redeploying affected ClusterProfiles.

Sveltos ensures the systems are always consistent and predictable, preventing unexpected issues.

Note

To learn more about the available syncMode options, take a look here.

Ignore Annotation

We can stop certain resources from being tracked for configuration drift. This is done by adding a special annotation projectsveltos.io/driftDetectionIgnore to the resources of interest.

The below ClusterProfile will deploy a Kyverno helm chart. Patches are used to apply annotation to the Kyverno kyverno-admission-controller deployment. Any changes made to the resources deployed by the Helm chart will be flagged as a configuration drift. However, any modifications directly to the kyverno-admission-controller deployment will not be detected as drift.

    apiVersion: config.projectsveltos.io/v1beta1
    kind: ClusterProfile
    metadata:
      name: deploy-kyverno
    spec:
      clusterSelector:
        matchLabels:
          env: fv
      syncMode: ContinuousWithDriftDetection
      helmCharts:
      - repositoryURL:    https://kyverno.github.io/kyverno/
        repositoryName:   kyverno
        chartName:        kyverno/kyverno
        chartVersion:     v3.3.3
        releaseName:      kyverno-latest
        releaseNamespace: kyverno
        helmChartAction:  Install
      patches:
      - target:
          group: apps
          version: v1
          kind: Deployment
          name: "kyverno-admission-controller"
        patch: |
          - op: add
            path: /metadata/annotations/projectsveltos.io~1driftDetectionIgnore
            value: "ok"

Ignore Fields

We can optionally specify fields to be excluded from the drift detection using JSON Pointers. The below snippet is an example of how this could be achieved.

apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterProfile
metadata:
  name: nginx
spec:
  clusterSelector:
    matchLabels:
      env: prod
  syncMode: ContinuousWithDriftDetection
  helmCharts:
  - repositoryURL:    https://helm.nginx.com/stable/
    repositoryName:   nginx-stable
    chartName:        nginx-stable/nginx-ingress
    chartVersion:     1.3.1
    releaseName:      nginx-latest
    releaseNamespace: nginx
    helmChartAction:  Install
  driftExclusions:
  - paths:
    - "/spec/replicas"
    target:
      kind: Deployment

Customize drift-detection-manager configuration

In some cases, we might want to tailor the deployment of the drift-detection-manager. To achieve this, the addon-controller pod accepts a new argument named drift-detection-config.

The drift-detection-config argument points to a ConfigMap within the projectsveltos namespace. The ConfigMap holds patches that will be applied to the drift-detection-manager before its deployment in the managed cluster.

ConfigMap Example

apiVersion: v1
kind: ConfigMap
metadata:
  name: drift-detection
  namespace: projectsveltos
data:
  patch: |-
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: drift-detection-manager
    spec:
      template:
        spec:
          containers:
            - name: manager
              image: registry.company.io/projectsveltos/drift-detection-manager:dev
              resources:
                requests:
                  memory: 256Mi

Along with creating the ConfigMap, we also need to configure the addon-controller deployment to use it. To do this, add the below argument to the deployment.

- args:
  ...
  - --drift-detection-config=drift-detection

With the defined configuration, the drift-detection-manager will get deployed in each managed cluster with the below settings.

• Request memory: 256Mi
• Image: projectsveltos/drift-detection-manager:dev

Tip

If you are deploying Sveltos using the official Helm chart and need to patch the drift-detection-manager before deployment, include the necessary values in your values.yaml file.

$ helm install projectsveltos projectsveltos/projectsveltos -n projectsveltos -f values.yaml

addonController:
  controller:
    args:
    - --diagnostics-address=:8443
    - --report-mode=0
    - --shard-key=
    - --v=5
    - --version=v0.44.0
    argsAgentMgmtCluster:
    - --diagnostics-address=:8443
    - --report-mode=0
    - --agent-in-mgmt-cluster
    - --shard-key=
    - --v=5
    - --version=v0.44.0
    - --drift-detection-config=drift-detection-config
agent:
  managementCluster: true
