Cluster Promotion: Progressive Rollouts

The ClusterPromotion Custom Resource Definition (CRD) solves the challenge of performing phased rollouts of cluster configurations and add-ons managed by Sveltos. We can avoid creating and managing multiple ClusterProfile resources with the same content. Instead, we define the configuration once and list the deployment stages in order.

Sveltos automatically handles the workflow:

It takes a single, shared configuration defined in spec.profileSpec.
It applies this configuration sequentially to clusters matching the selector of the first stage.
Upon successful deployment of the current stage, Sveltos waits for the configured promotion trigger (e.g., a time delay) before proceeding to the next stage.

Concept	Description
profileSpec	The single source of truth for the configuration (e.g., Helm charts, Kubernetes resources, secrets, or config maps). This specification is shared across all stages.
Staged Rollout	An ordered series of stages, each with a unique `clusterSelector`. The configuration is only deployed to the next stage once the previous stage is fully reconciled and the trigger condition is met.
ClusterProfile Generation	For each active stage, Sveltos automatically generates a temporary `ClusterProfile` resource using the shared `profileSpec` and the stage's specific `clusterSelector`. This keeps the configuration DRY (Don't Repeat Yourself) while leveraging Sveltos's core reconciliation logic.
Promotion Control	The `trigger` field within each stage dictates the criteria for moving to the next stage. Both Automated Promotion and Manual Promotion

apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterPromotion
metadata:
  name: core-payment-processor-ci
spec:
  profileSpec:
    helmCharts:
    - chartName: internal-repo/core-paymet-processor
      chartVersion:     5.2.0 # The critical new version to test
      helmChartAction:  Install
      releaseName:      financial-api-v5
      releaseNamespace: propietary-apps
      repositoryName:   internal-repo
      repositoryURL:    internal-repo/core-paymet-processor
  stages:
  - name: development # For developer unit and integration testing
    clusterSelector:
      matchLabels:
        env: development
  - name: uat # For business users (e.g., traders, finance teams) to validate against requirements
    clusterSelector:
      matchLabels:
        env: uat
  - name: staging # For final technical tests (load, performance, security) with prod-like scale
    clusterSelector:
      matchLabels:
        env: staging
  - name: production # For final, live environment
    clusterSelector:
      matchLabels:
        env: production

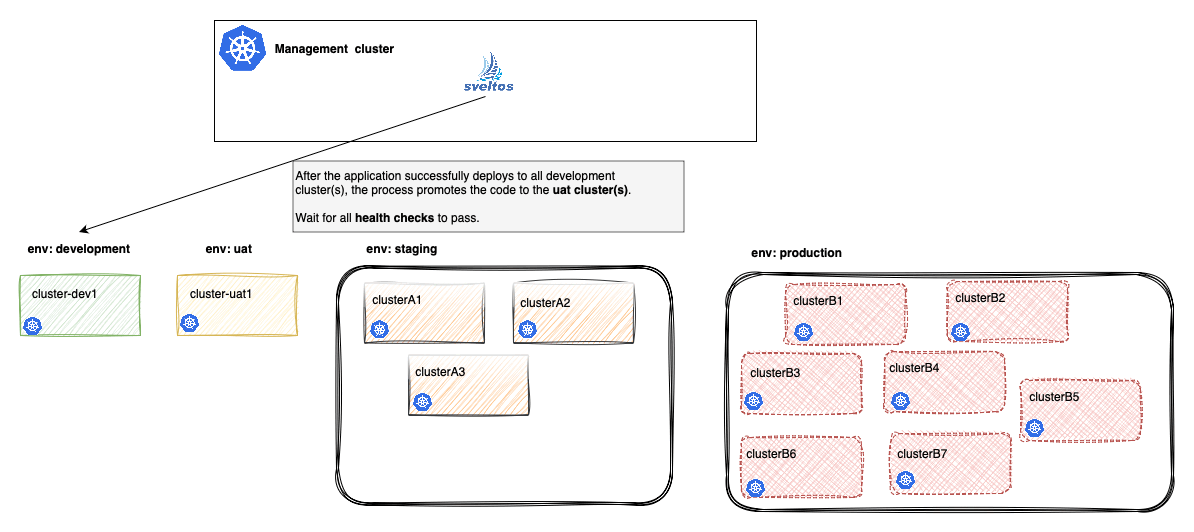

ClusterPromotion in action

Advantages

Stage-based Promotion: Deployments start in early-stage environments like QA. Then, they are gradually promoted through stages such as staging and pre-production before reaching production. This staged approach keeps clusters available during deployments and minimises downtime.
Lower Risk: Teams can catch issues early in the rollout and fix them before they affect other clusters.
Easy Management: The DRY approach is used, allowing teams to define the configuration once and Sveltos handles the rest.
Flexible Control: Teams can choose their preferred workflows. They can select between automatic or manual promotion for each stage based on their needs.
Health Checks Support: Automated health checks ensure clusters are in a good state before moving to the next stage.

Example

The example demonstrates rolling out the kyverno-latest Helm chart with a specific replica count, first to clusters labeled env: staging, and then to clusters labeled env: production.

Example - ClusterPromotion for Kyverno Deployment

apiVersion: config.projectsveltos.io/v1beta1
kind: ClusterPromotion
metadata:
  name: test-kyverno-rollout
spec:
  # The configuration (profileSpec) is defined once
  profileSpec:
    syncMode: Continuous
    helmCharts:
    - repositoryURL:    https://kyverno.github.io/kyverno/
      repositoryName:   kyverno
      chartName:        kyverno/kyverno
      chartVersion:     3.5.2
      releaseName:      kyverno-latest
      releaseNamespace: kyverno
      helmChartAction:  Install

  # Stages are processed sequentially
  stages:
  - name: staging # Stage 1: Staging environment
    clusterSelector:
      matchLabels:
        env: staging
    trigger:
      auto:
        delay: 5m # Wait 5 minutes after successful deployment before promoting

  - name: production # Stage 2: Production environment
    clusterSelector:
      matchLabels:
        env: production
    trigger:
      auto:
        delay: 5m # Wait 5 minutes after successful deployment (optional for final stage)

Workflow Execution

Stage 1 (staging):
- Sveltos creates a ClusterProfile targeting clusters with the label set to env: staging.
- Sveltos waits for the deployment to complete on all staging clusters without errors.
- Once complete, Sveltos waits for 5 minutes (the delay period).
Stage 2 (production):
- After the delay, the configuration is automatically promoted. Sveltos creates a new ClusterProfile targeting clusters with the label set to env: production.
- Sveltos waits for the deployment to complete on all production clusters without errors.
- The ClusterPromotion resource is marked as fully reconciled.

Tip

To manually promote the Kyverno deployment from staging to production, perform the changes described below.

      stages:
      - name: staging # Stage 1: Staging environment
        clusterSelector:
          matchLabels:
            env: staging
        trigger:
          manual:
            approved: false

      - name: production # Stage 2: Production environment
        clusterSelector:
          matchLabels:
            env: production
        trigger:
          auto:
            delay: 5m # Wait 5 minutes after successful deployment (optional for final stage)

An operator must manually set the trigger.manual.approved field to true. Once that is done, Kyverno will get deployed in the production clusters.

Verification commands:

$ kubectl get clusterpromotion,clusterprofile,clustersummary -A

$ kubectl get clusterpromotion <ClusterPromotion name> -n <namespace> -o yaml

Triggers and Control

The progressive rollout is governed by the Trigger defined within each stage. A stage's trigger defines the condition needed—either manual approval or automatic criteria—before Sveltos moves to the next stage in the pipeline. A stage can have either a Manual or Auto trigger, but not both.

Automatic Promotion (`AutoTrigger`)

The AutoTrigger facilitates a hands-off, time-based, and health-checked promotion flow.

Field	Type	Description
`delay`	`metav1.Duration`	An optional duration to wait after the current stage's configuration is fully deployed before proceeding to health checks. This is your soak time.
`postDelayHealthChecks`	`[]ValidateHealth`	A slice of health checks (defined using `ValidateHealth`) that Sveltos must successfully run after the `delay` has elapsed. Promotion is blocked until all these checks pass.
`promotionWindow`	`*TimeWindow`	An optional recurring time window that restricts when the promotion can begin. Sveltos waits for this window to be open after the `delay` has elapsed and all health checks have passed.

Manual Promotion (`ManualTrigger`)

The ManualTrigger stops the pipeline and needs human intervention. It is usually used for moving into high-risk environments, like Production.

Field	Description
`approved`	When set to `true`, this signals to Sveltos that the human operator has reviewed the previous stage and approved the promotion to the next stage.
`automaticReset`	If set to `true` (default), Sveltos will automatically reset the `approved` field to `nil`/`false` after successfully promoting to the next stage.

Note

Test the progressive rollout capabilities with up to two ClusterPromotion instances for free. Need more than two clusters? Contact us at support@projectsveltos.io to explore license options based on your needs!

For more information about the Automatic and Manual promotion and available fields, have a look at the ClusterPromotion Types.
